Description

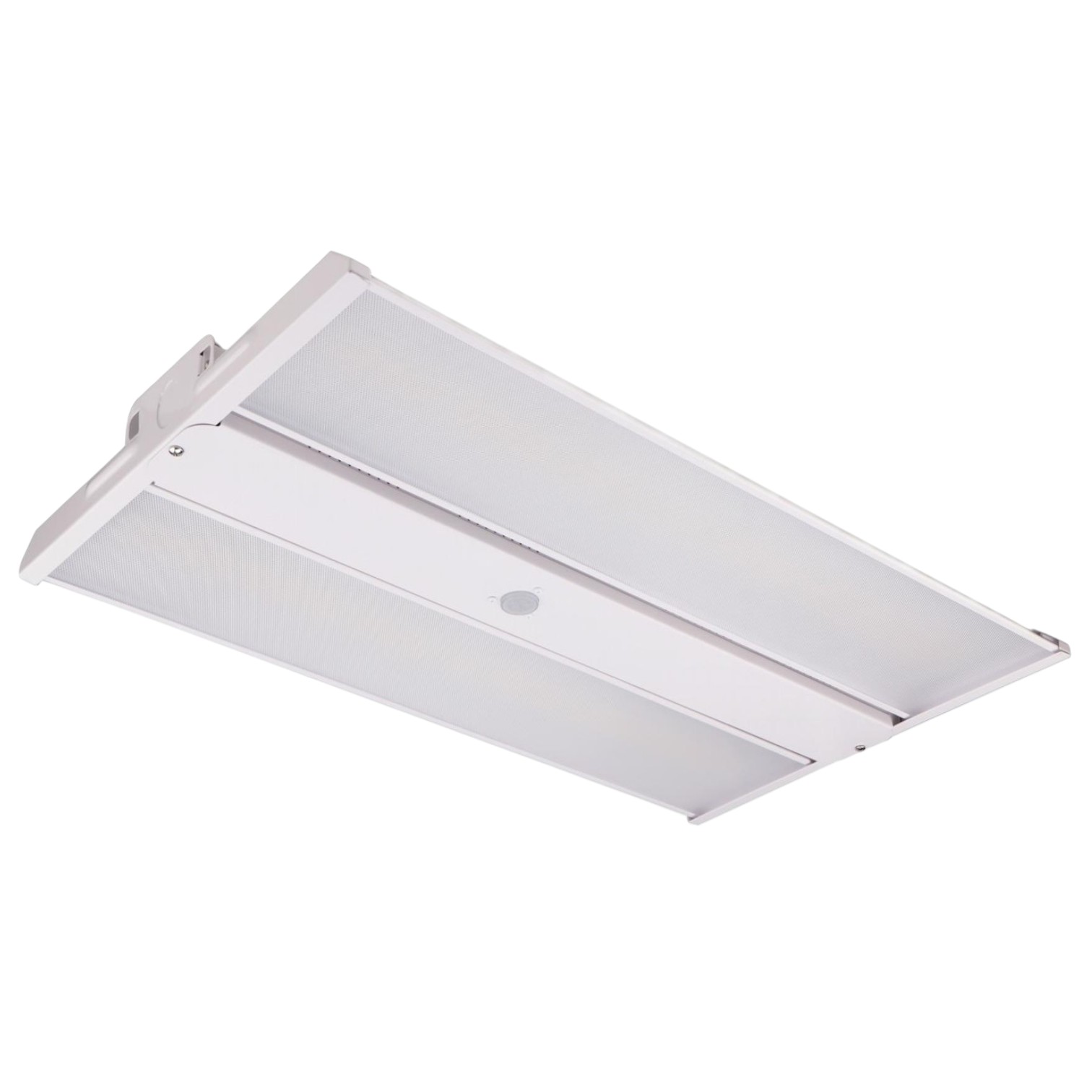

LED Linear High Bay — 130/150/165W Switchable, 4000K/5000K CCT, 0–10V Dimmable, DLC

FEATURES AND SPECIFICATIONS:

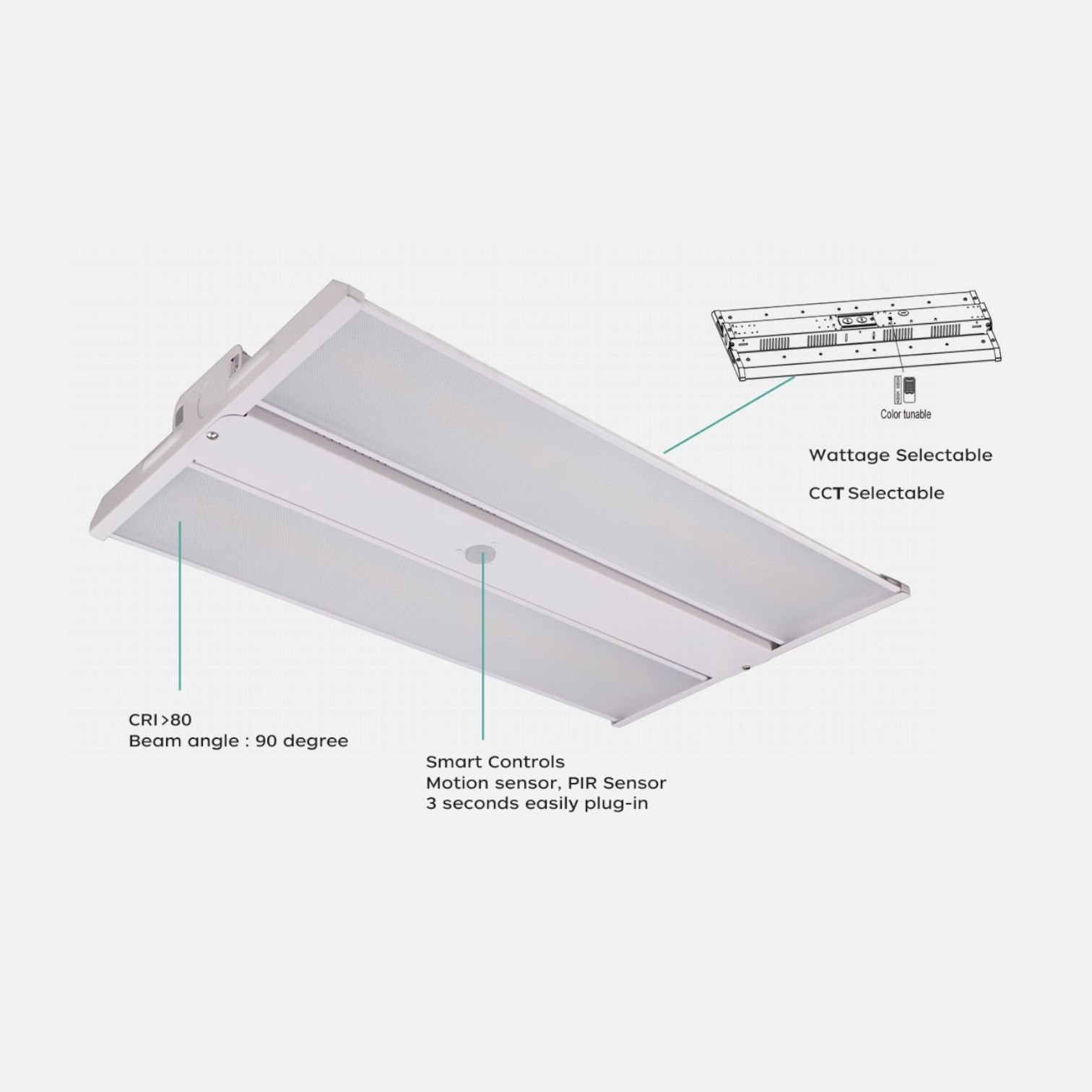

• Wattage Selectable: set output to 130W / 150W / 165W to match ceiling height and foot-candle targets.

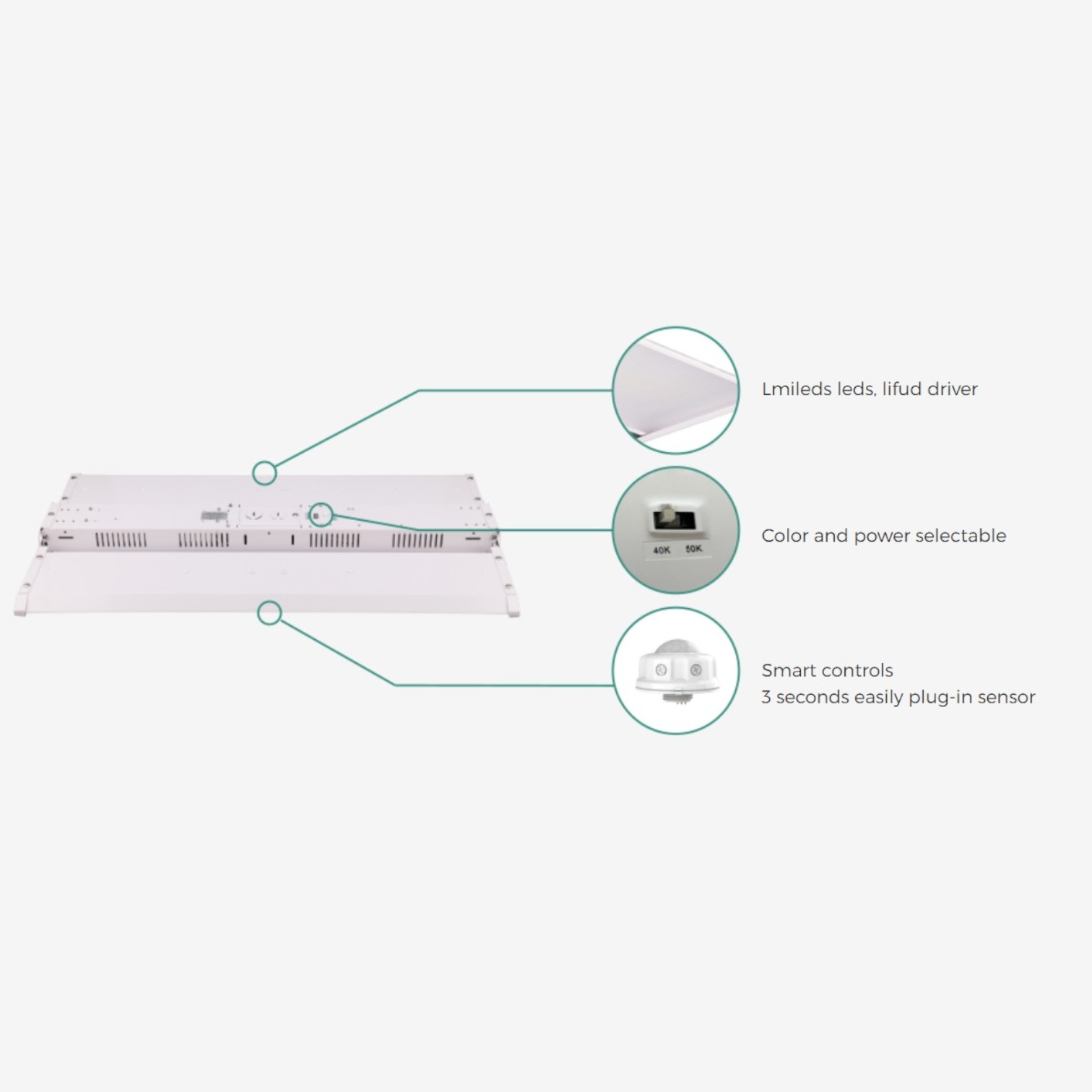

• CCT selectable: choose 4000K neutral white or 5000K daylight for crisp, uniform illumination.

• High efficacy: up to 150 lm/W for lower energy costs and fast ROI on retrofit projects.

• 0–10V dimming: smooth, flicker-free dimming via standard controls and sensors.

• Universal voltage: 120–277 VAC input for universal commercial applications.

• Rugged build: die-cast aluminum body for superior thermal management and long service life.

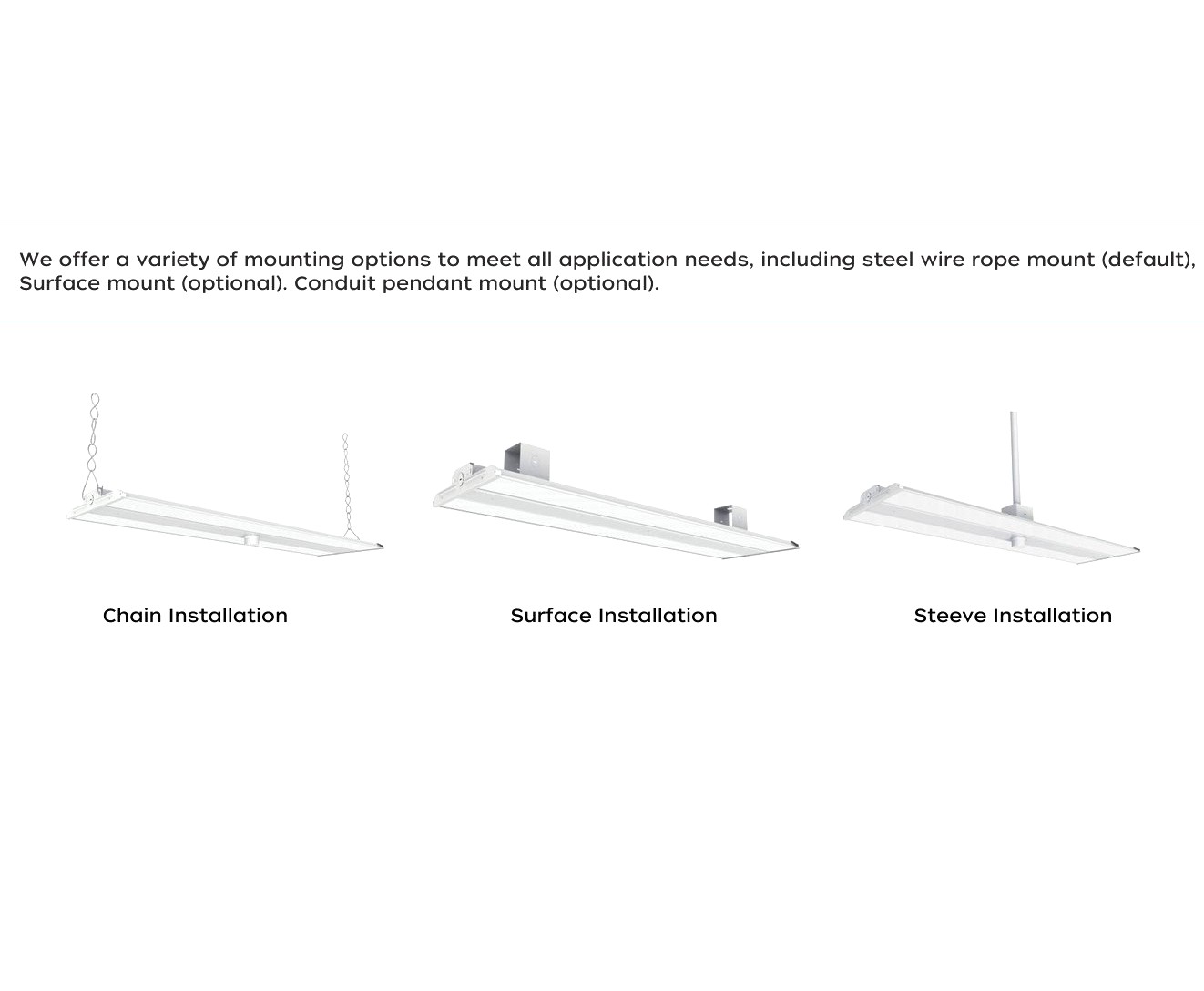

• Mounting options: steel wire-rope suspension (default); surface mount hardware available.

• Smart controls: optional microwave motion sensor for bi-level/standby operation.

• Emergency ready: add emergency battery (operates 0°C to 50°C) to meet egress requirements.

• Durability: -30°C to 50°C operating range (-22°F to 122°F) for demanding environments.

Low-profile aluminum housing. Up to 150 lm/W. UL & DLC (damp location). 5-year warranty

Performance & electrical

• Efficacy: up to 150 lm/W

• Selectable wattage: 165/150/130W

• Input voltage: 120–277 VAC

• Driver: constant-current, 0–10V dimming

• Operating temp: -30°C to 50°C (emergency battery 0–50°C)

• Rated life: 50,000 hours (LM-80/TM-21)

• Warranty: 5 years

Construction & optics

• Super-compact linear profile minimizes shadowing and visual clutter in high-bay ceilings

• Die-cast aluminum housing enhances heat dissipation and long-term lumen maintenance

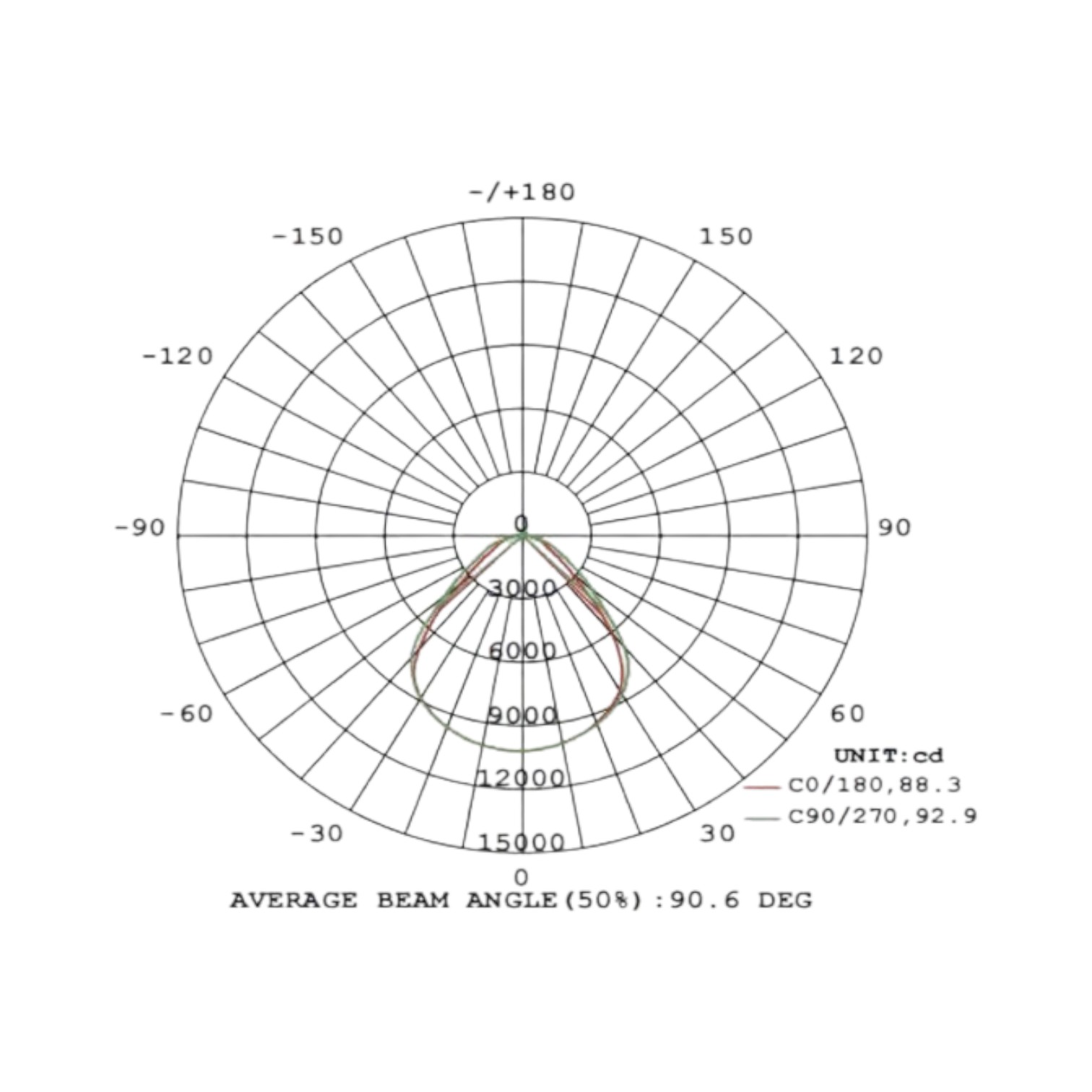

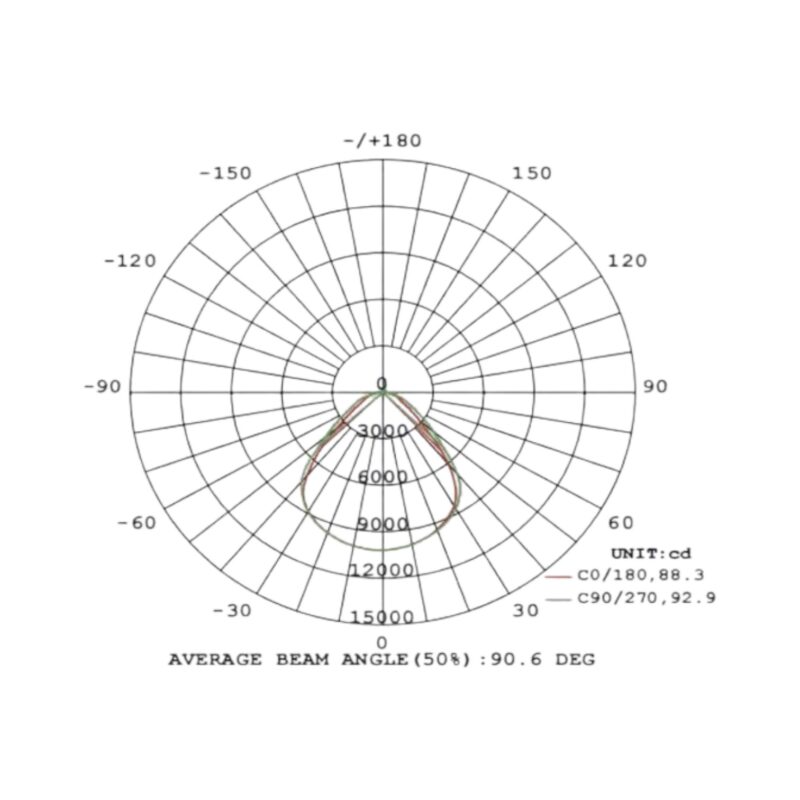

• Precision lensing delivers uniform, low-glare distribution across aisles and open bays

Listings & compliance

• UL Listed

• DLC Qualified, Damp Location rated

• Often meets utility rebate criteria (verify locally)

Applications

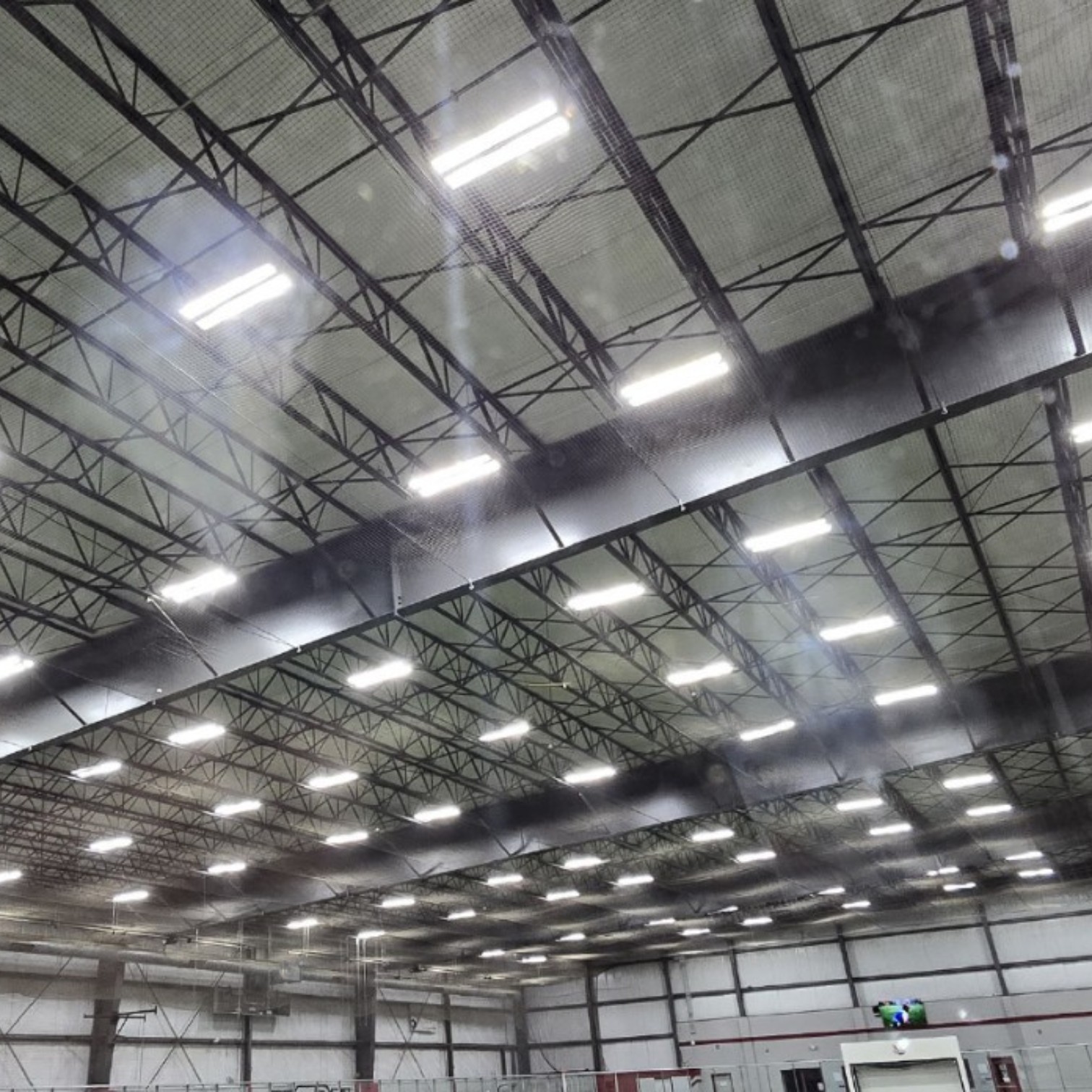

Warehouses, distribution centers, manufacturing floors, supermarkets, gymnasiums, big-box retail, and other large high-bay areas.

What’s in the box

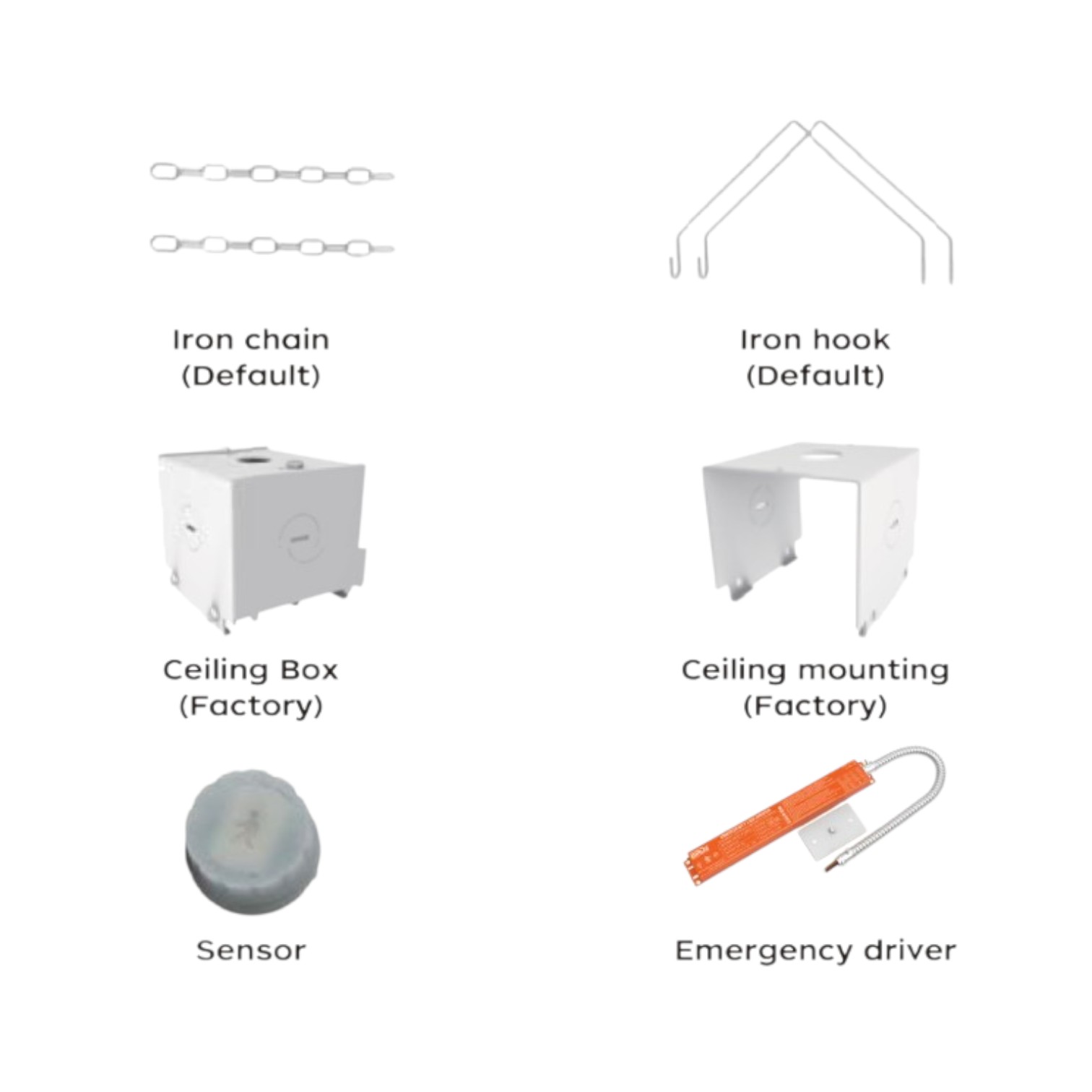

LED linear high bay fixture, steel wire-rope suspension kit (default), installation guide. Surface-mount kit, sensor, and emergency battery sold separately.

FAQ (long-tail SEO)

Q: What ceiling height works best?
A: Typical high-bay mounting from 15–40 ft, depending on spacing, output setting, and target foot-candles.

Q: Is it compatible with controls?
A: Yes. The driver supports 0–10V dimming and optional microwave sensors for bi-level operation.

Q: Can I add emergency lighting?
A: Yes. Use the compatible emergency battery (0–50°C) for egress requirements.

Q: What mounting is included?
A: Steel wire-rope suspension is standard; surface-mount hardware is optional.
