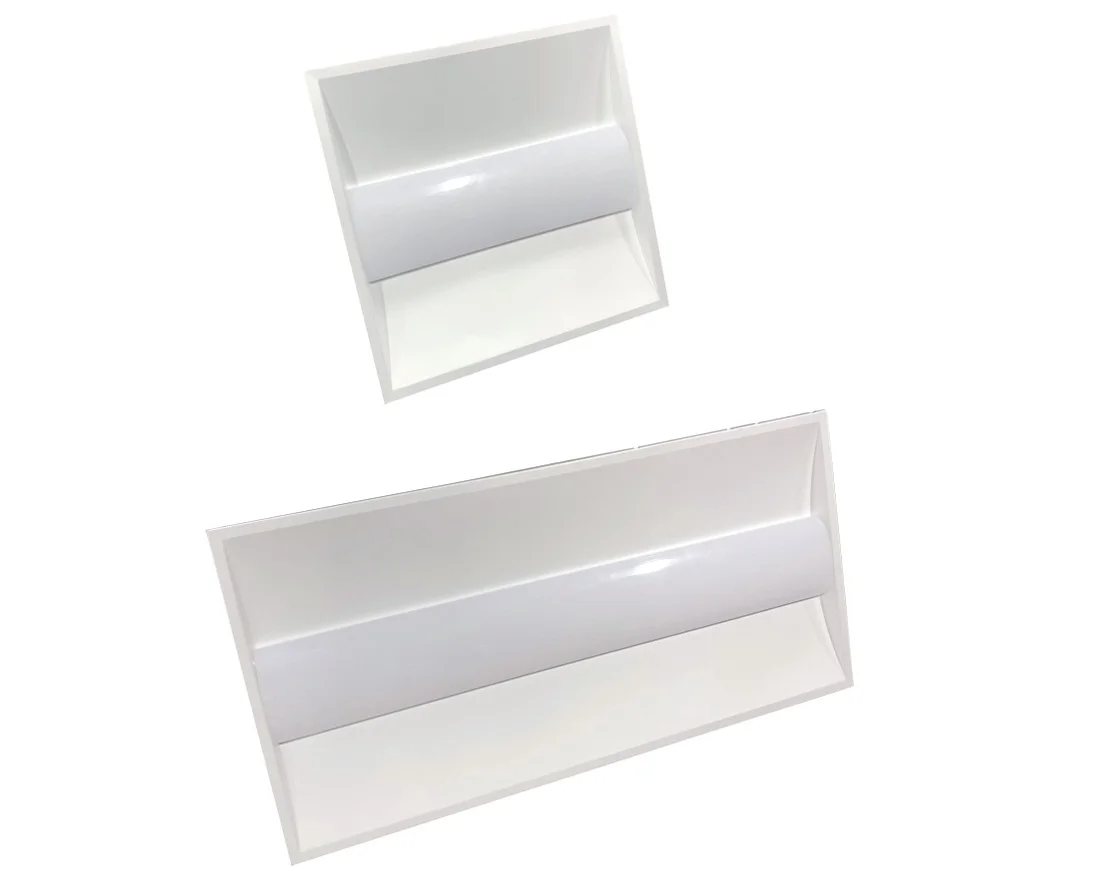

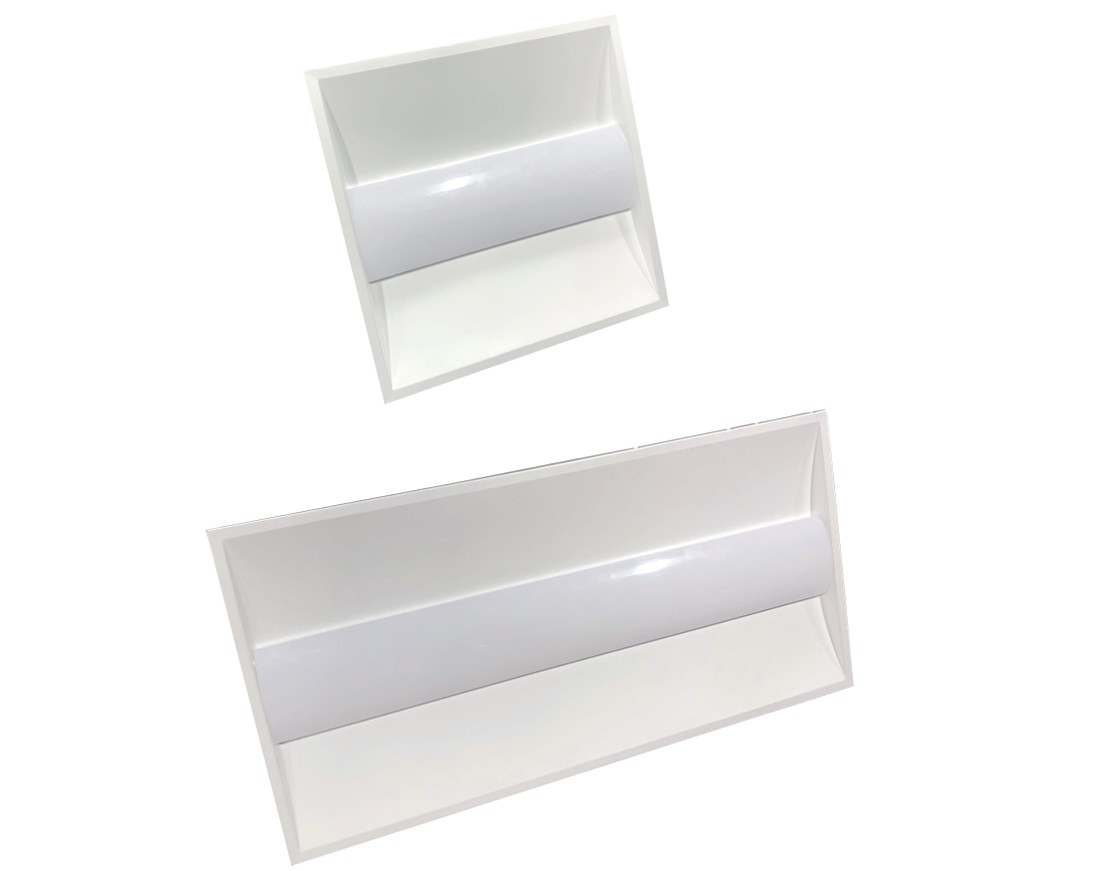

LED Troffer Center Basket Fixture | 5 Wattage Switch | 5 wattage Adjustable & 5 Color Tunable LED Troffer | 4 Pack

Description

LED Troffer Center Basket Fixture| 5 Wattage Switch | 3000K to 6500K (CCT) Switchable | 120-277 VAC (Input Voltage)

FEATURES AND SPECIFICATIONS:

2′ x 2′ LED Troffer, Power Switchable 20W/25W/30W/35W/40W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC

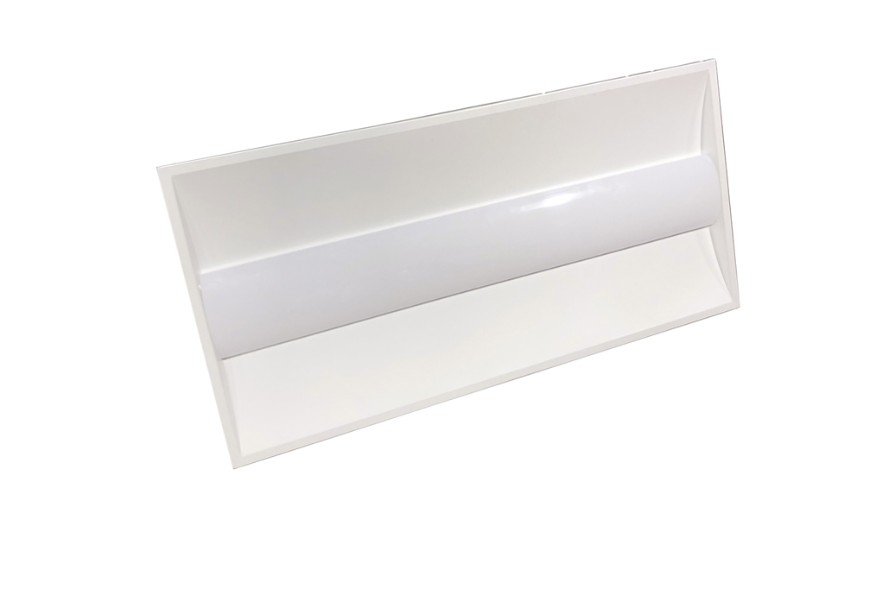

2′ x 4′ LED Troffer, Power Switchable 30W/40W/50W/60W/72W, Color Switchable 3000K/3500K/4000K/5000K/6500K, 120-277VAC

Construction:

• LED Troffer Retrofit Kit Lighting Panel Precision die-formed steel housing in a white finish
• Recessed design fits most standard T-bar grid ceilings

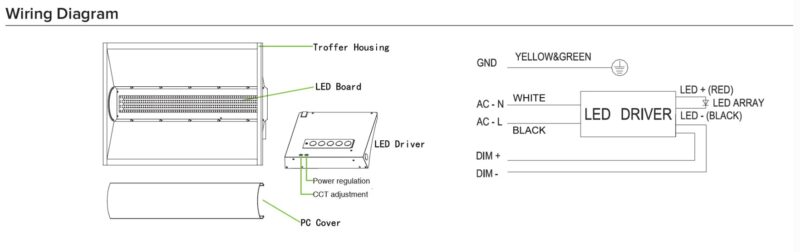

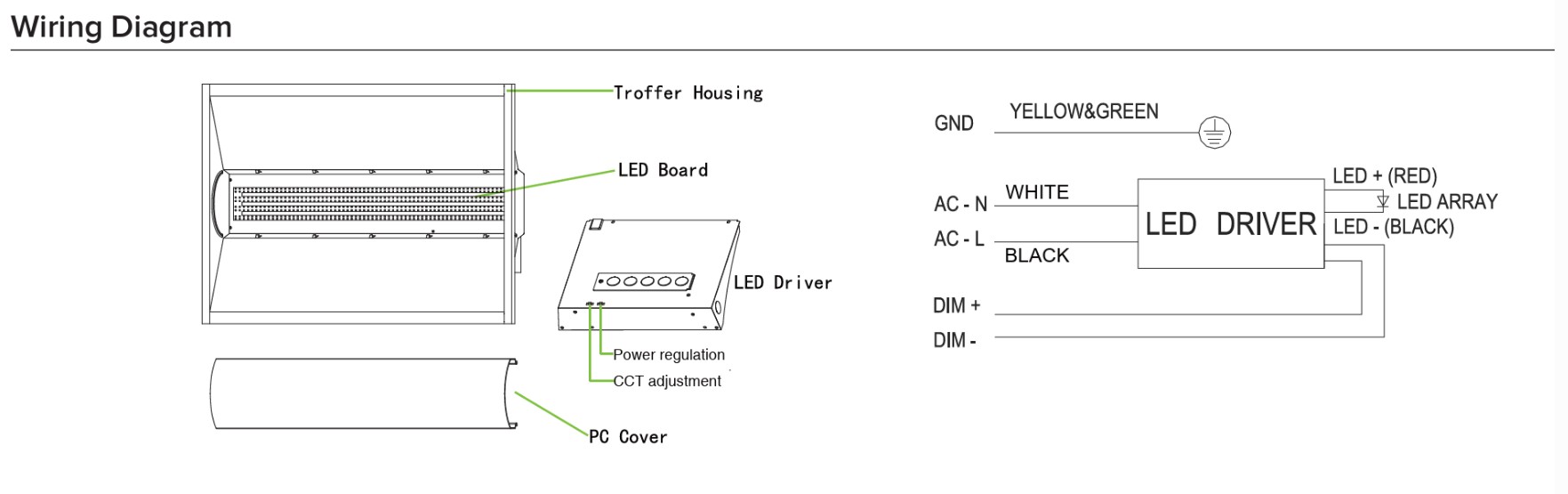

• 5 Wattage and 5 CCT switches located on driver junction box
• Large driver box for easy installation and wiring

Electrical:

•  Input Voltage: 120-277Vac 50/60Hz
• 0-10V dimmable
• THD≤10%, PF≥0.95

Application:

• Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.

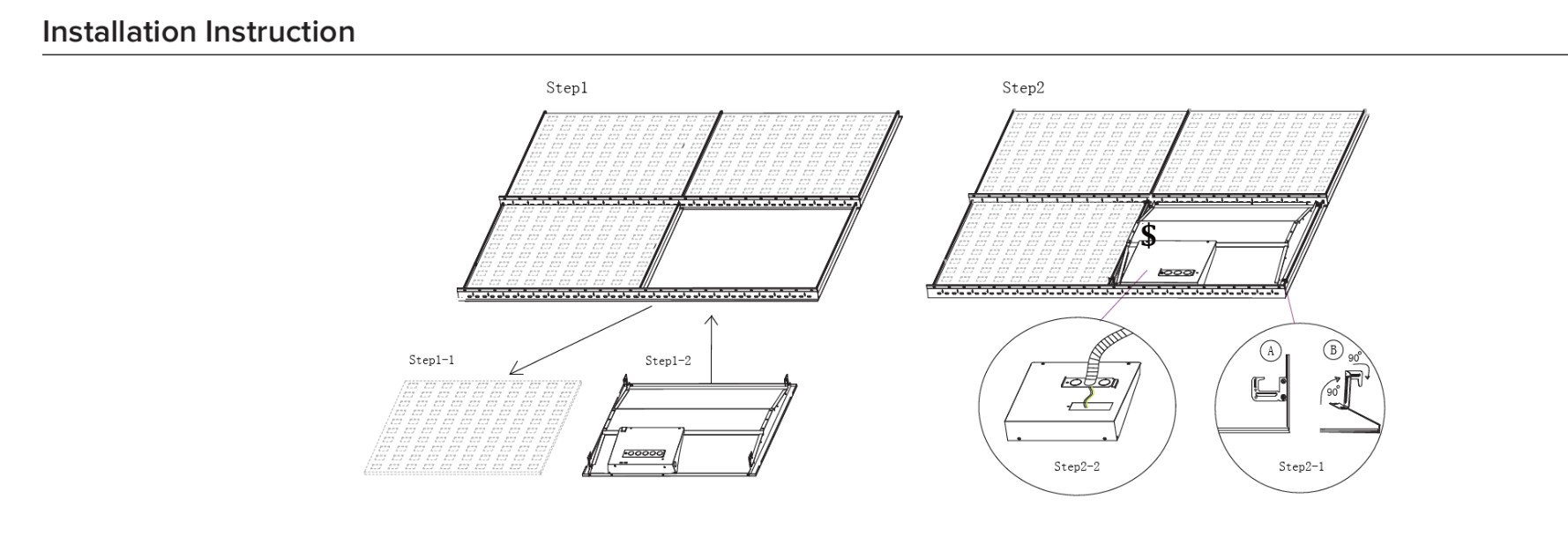

Installation:

• Unit simply lifts through grid ceiling and rests on T-bars for LED Troffer Retrofit Kit Lighting Panel
• Easy installation in new construction or retrofit
• Standard recessed mounting in most 2’ x 2’ or 2’ x 4’ grid ceilings
• Earthquake clips included
• Easily set wattage and CCT during installation using the adjustment switches located on the driver box
• Use in ambient temperatures ranging from -20° C to 45° C

Listing:

• ETL listed, suitable for damp location.
• Design Lights Consortium ®(DLC)Premium.

5-year limited warranty. Actual performance may differ as a result of end -user environment and application.
