12 inch square light cover polycarbonate

F-5222 | Pyramid Lens | Drop Lens | Size: 12″ x 12″ x 2.51″ DEEP| Polycarbonate

$ 50.00

12-3/8″ nominal square pyramid drop light cover
Made from clear, vandal-resistant polycarbonate

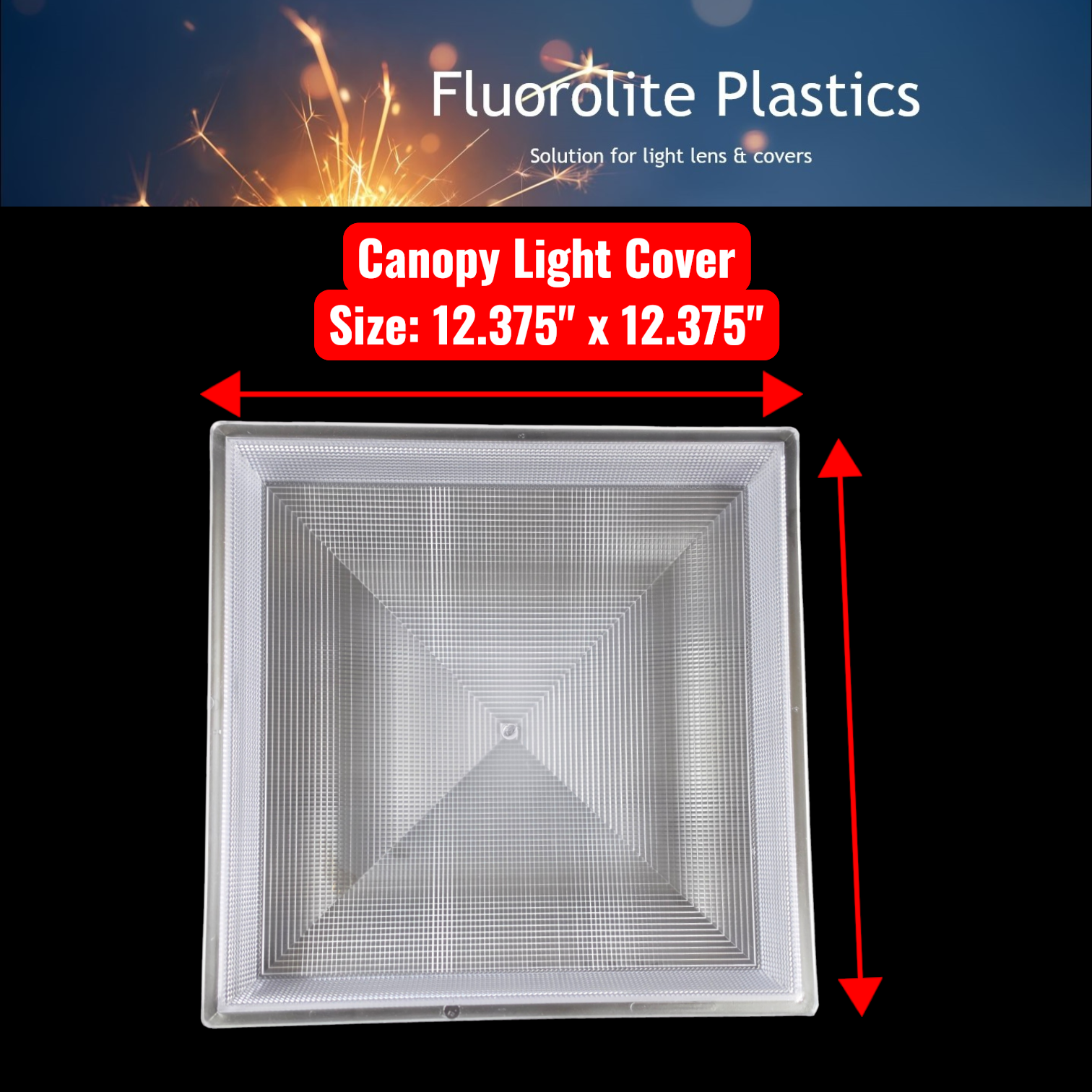

Overall size: 12″ x 12″
Overall depth: approximately 2.51″
Drop-in opening: approximately 11.5″ x 11.5″
Designed for square light distribution
Compatible with many LED, HID, CFL, incandescent, and fluorescent fixtures
Prism design provides attractive appearance and controlled light distribution
Polycarbonate construction helps resist severe impact and vandalism
Clear acrylic option is also available upon request

In stock

SKU: F-5222 Categories: Drop Dish Replacement Light Covers, Wall Packs Replacement Light Covers Tags: square light lens, 12"x12" Canopy Light Cover, 12 inch light fixture lens, 12x12 light cover, square lighting lens, 12-3/8 light cover, Square Drop Lens, clear polycarbonate light cover, polycarbonate light lens, drop light cover, vandal resistant light lens, lens, impact resistant light lens, fluorescent light lens, commercial light fixture lens, Light, LED light lens, commercial ceiling light cover, commercial lighting cover, light covers, HID light lens, Commercial Light Cover, replacement light fixture lens, square light cover, CFL light cover, impact resistant light cover, pyramid prism light lens, Prismatic Light Cover, acrylic light lens, pyramid light cover, pyramid drop light cover, Vandal Resistant Light Cover, replacement light lens, drop light lens, pyramid light lens, Lexalite Polycarbonate Canopy Light Cover, square fixture lens, LED light fixture lens

Description
Additional information

Description

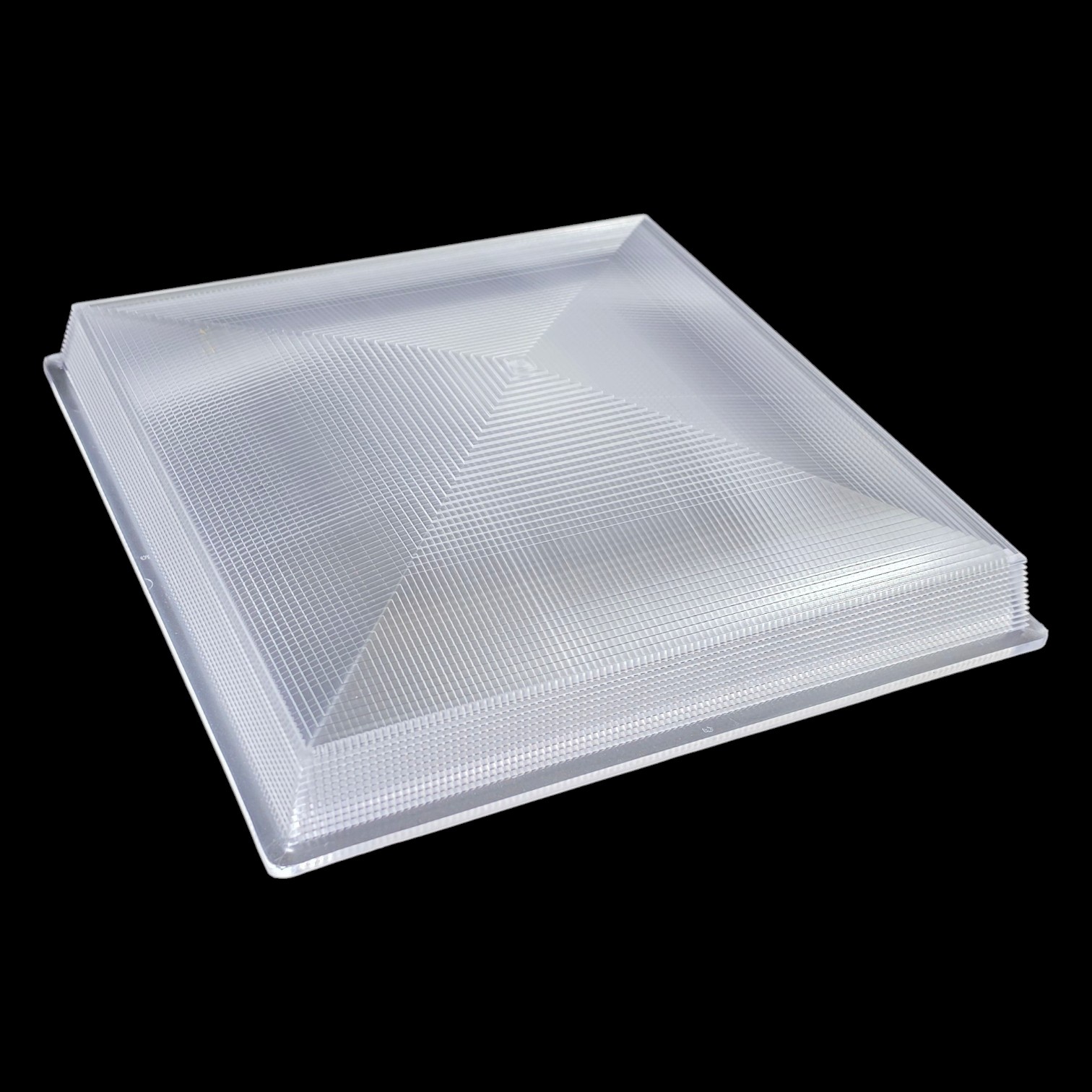

Pyramid Drop Light Cover – Clear Polycarbonate

The Pyramid Drop Light Cover is an injection-molded clear polycarbonate light lens designed for square lighting fixtures that require a durable, attractive lens with controlled light distribution.

Its pyramid prism structure creates a distinctive appearance while helping distribute light across the illuminated area. The square light lens design provides an alternative to conventional circular light distribution and can help create more consistent coverage across the space.

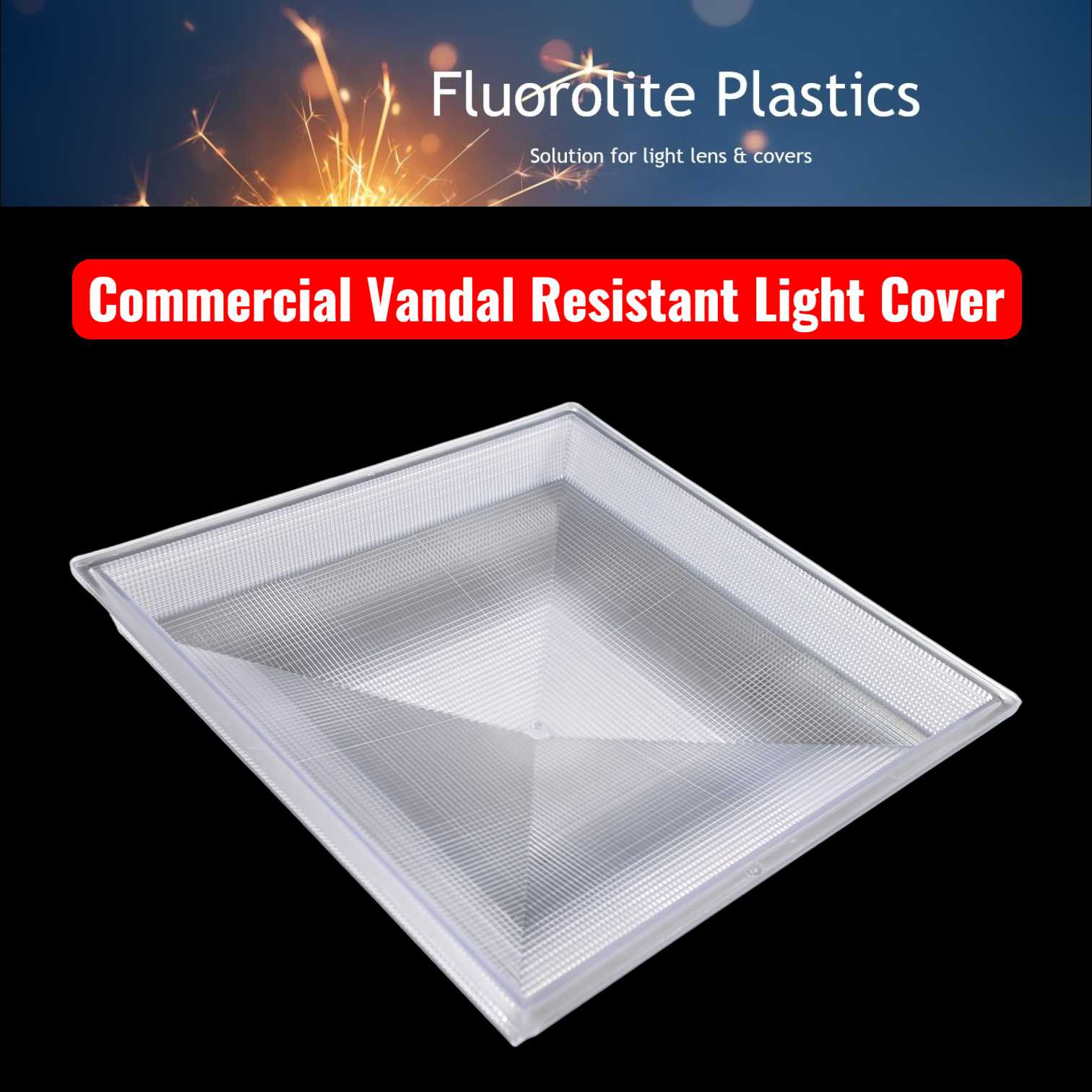

Vandal-Resistant Polycarbonate

This polycarbonate light cover provides excellent impact resistance for commercial, industrial, institutional, and other applications where light fixtures may face accidental or intentional abuse.

The vandal-resistant construction helps protect the light source against severe impact and vandalism while maintaining clear light transmission.

A clear acrylic version is also available for applications where acrylic is preferred.

Fits Multiple Lighting Applications

Depending on the luminaire and installation, this pyramid light lens can be used with:

LED lighting
HID lamps
Incandescent lamps
CFL lamps
Fluorescent lamps
Other compatible lighting systems
UL recognized acrylic and polycarbonate materials

Always verify the fixture dimensions and lamp requirements before ordering.

Pyramid Prism Design

The molded prism structure provides both an attractive appearance and functional light distribution. The pyramid drop lens (lexalite series I22) creates a square distribution pattern that can provide broader coverage and may reduce the number of fixtures required for certain lighting layouts.

The appropriate fixture layout depends on the application, fixture design, lamp type, mounting height, and required illumination.

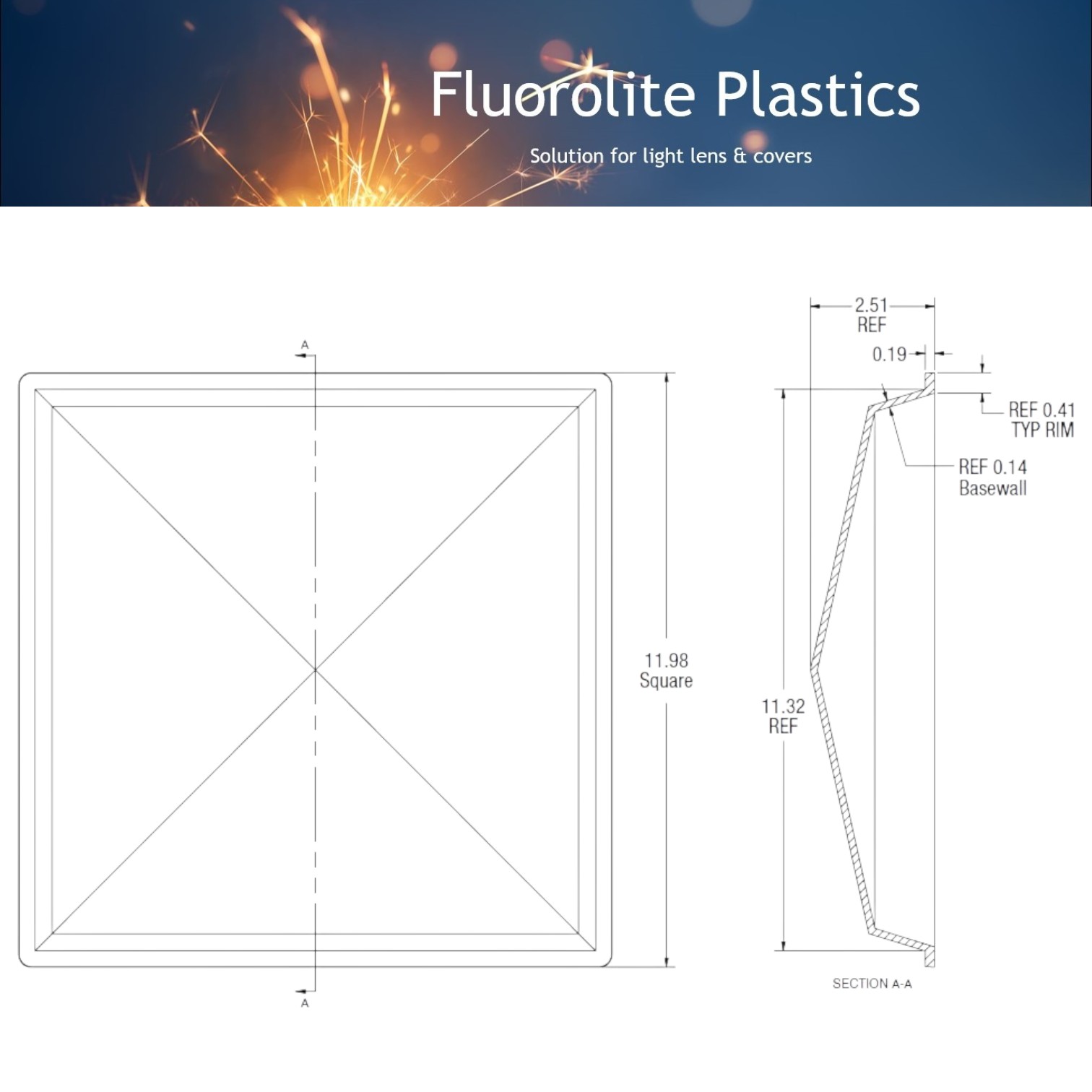

Product Dimensions

Shape: Square
Nominal Size: 12″ x 12″

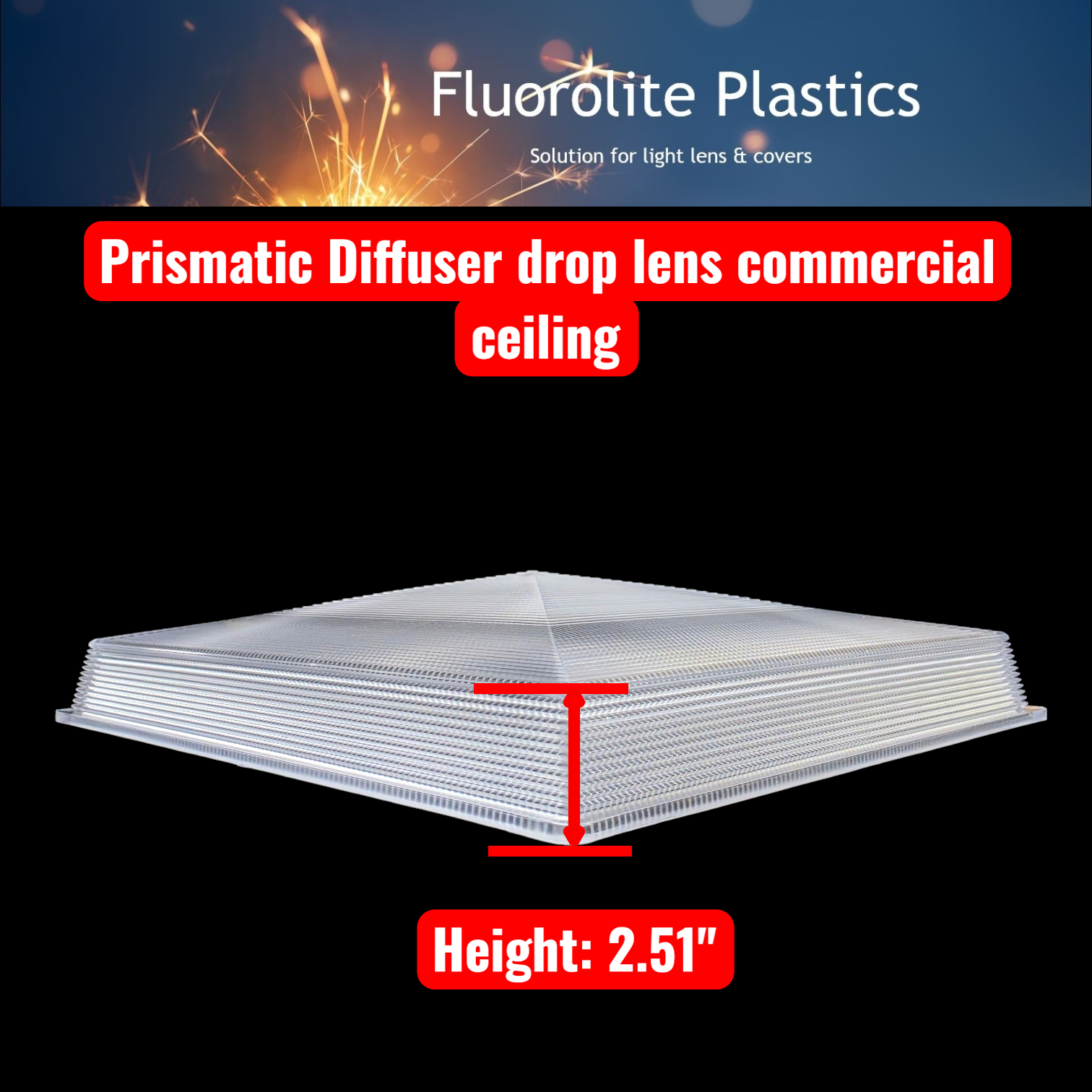

Depth: 2.51″
Drop-In Size: 11.5″ x 11.5″
Material: Clear Polycarbonate
Material Option: Clear Acrylic available upon request
Construction: Injection molded
Application: Commercial, industrial, institutional, and other compatible lighting fixtures

Important Temperature Information

When using the polycarbonate version, the lens surface temperature should not exceed 90°C.

Actual operating temperature depends on the fixture, lamp type, lamp location, ambient temperature, ventilation, and installation conditions.

Need a Different Light Cover?

Fluorolite Plastics manufactures and supplies a wide range of replacement light covers, acrylic lenses, polycarbonate lenses, LED light covers, fluorescent lenses, and custom lighting components.

If your existing lens is unavailable or you cannot identify the correct replacement, provide the dimensions and photos of your existing lens or fixture for assistance.

Additional information

Weight	5 lbs
Dimensions	12 × 12 × 3 in
